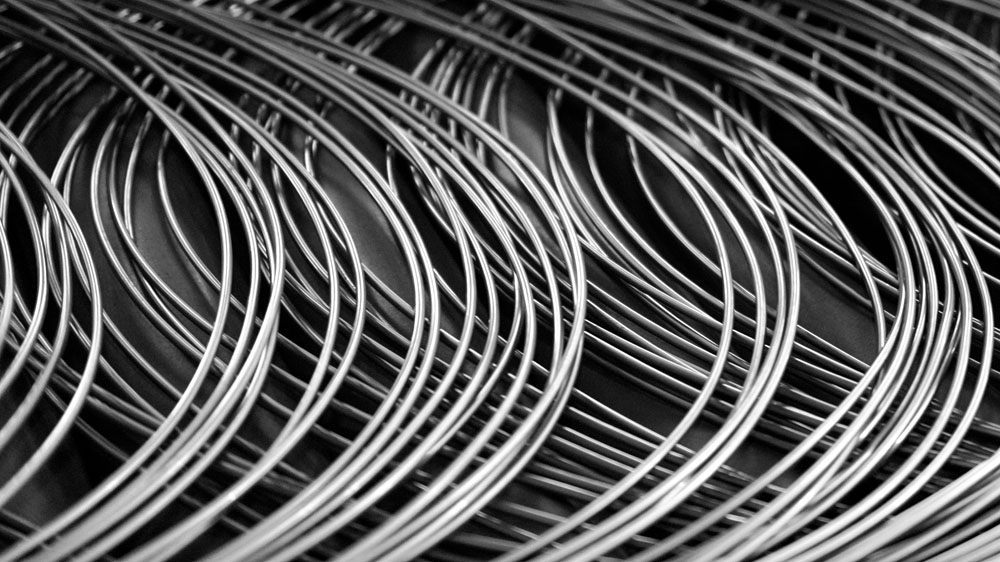

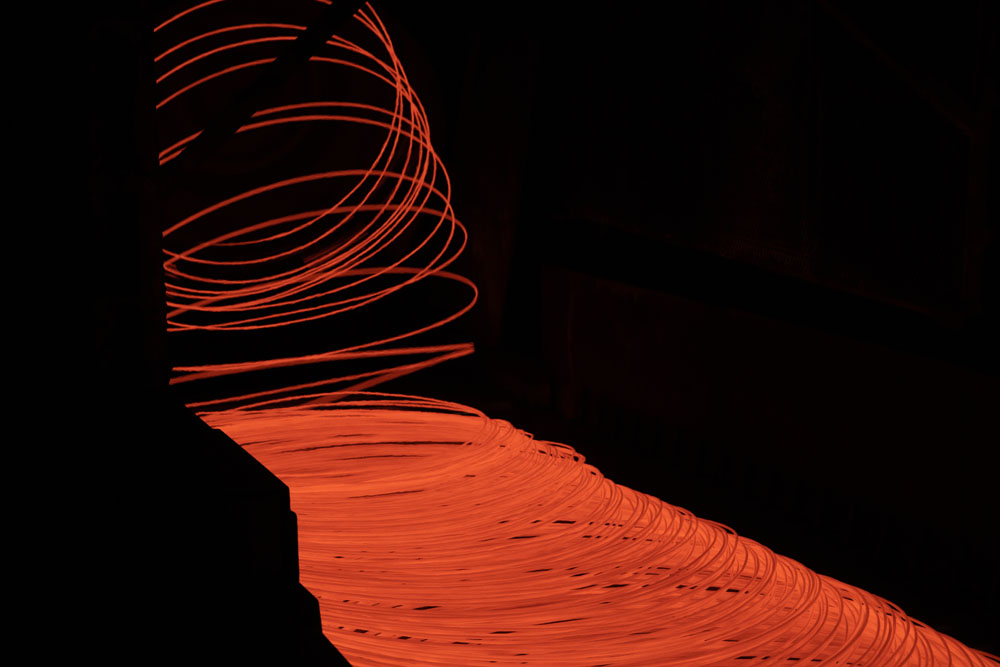

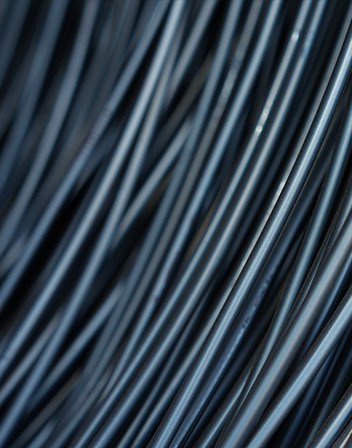

Wire rod is obtained by hot rolling of billet. It is a semi-finished product used for making welded wire and a very wide variety of products such as bolts, grids, chains and screws.
In the form of coils of 2 to 2.5 tons, the wire rod’s diameter varies between 5.5 to 16 mm.
Steel wire rods production range
-
Production Range
Diameter : From 5,5 mm to 16 mm
-
Coil Dimensions
Internal Diameter (ID) : 850 mm
Outer Diameter (OD) :1250 mm
Length: 1750 mm
-
Coil weight
About 2100 Kg
Wire rods production standards and steel qualities
Standard | Steel grades |
---|---|
NA ISO 6935-2 NA 8634 | RB500BWR |
DIN 488:2009 | B500B |
NEN 6008, BRL 0501 | B500B |
NBN A 24 301-304 | BE500S |
ST 009-2011 | B500C |
BDS 9252 | B500C |
CSA - G30.18-9 | GR500W |
CSA - G30.18-9 | GR400W |
ASTM A615 | GR 40 |
ASTM A615 | GR 60 |
ASTM A615 | GR 75 |
ASTM A 706 | GR 60 |

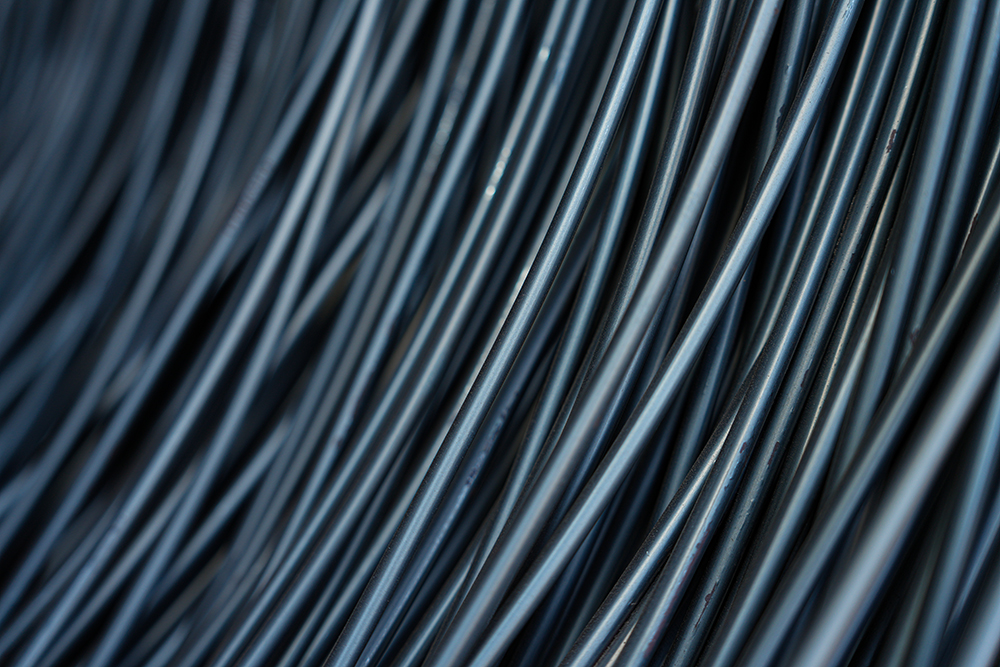

![](/media/Steel-Wire-Rods.jpg)
-
Tests
The tests, measurements and controls specified in the standards are carried out and evaluated at every stage of productions. Mill test certificates are presented to the customers after each shipment.
-
Marking
TOS mark or the marking specified in the international standards are put on the wire rods, which indicates that the product is produced by Tosyalı Algeria.
-
Packaging

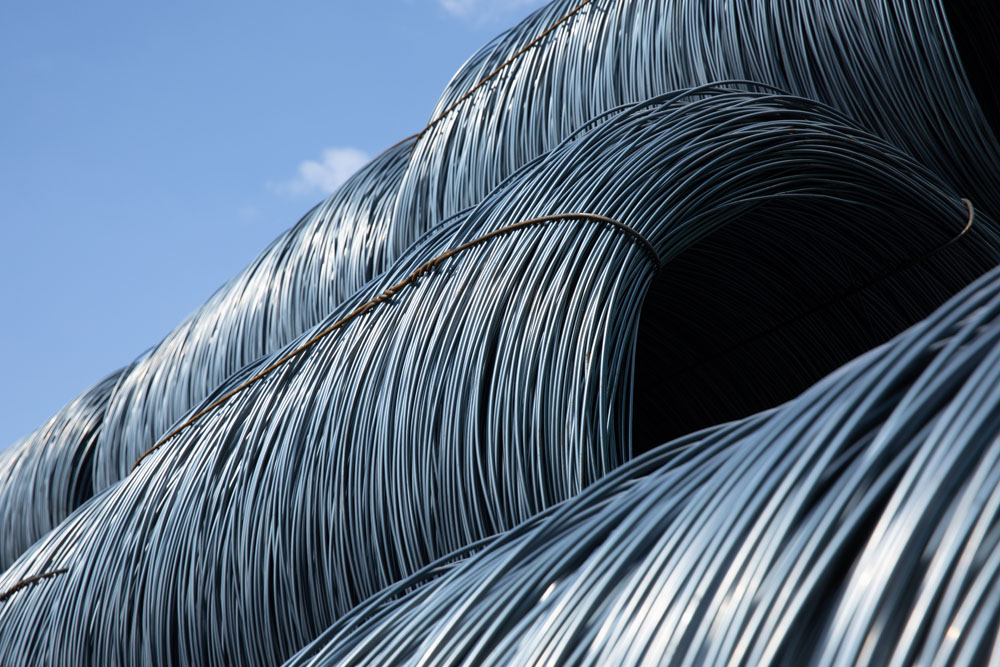

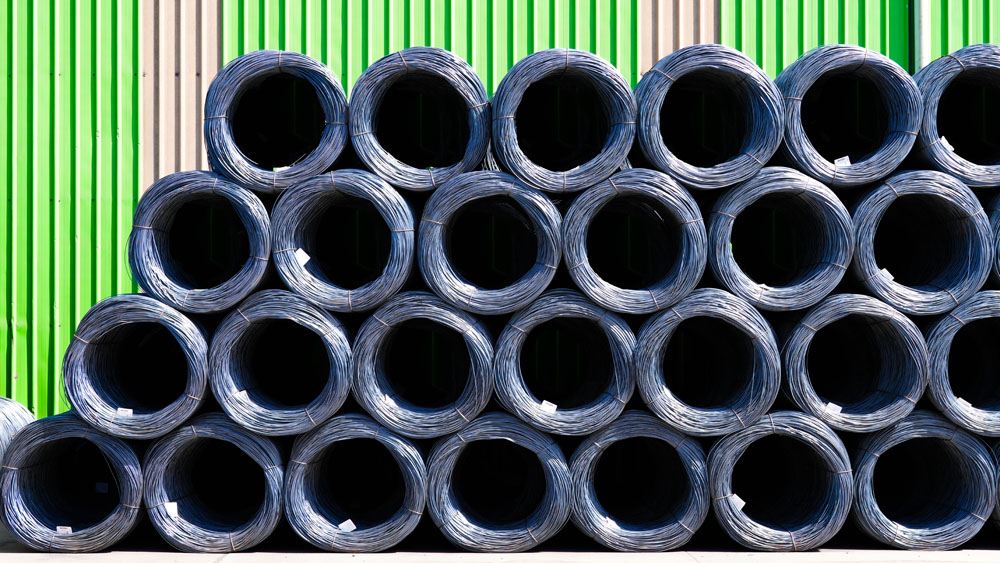

The wire rod is packaged in coils of 2 to 2.5 tons, tied with 7 mm wires at 4 points to ensure best handling.
-
Labeling

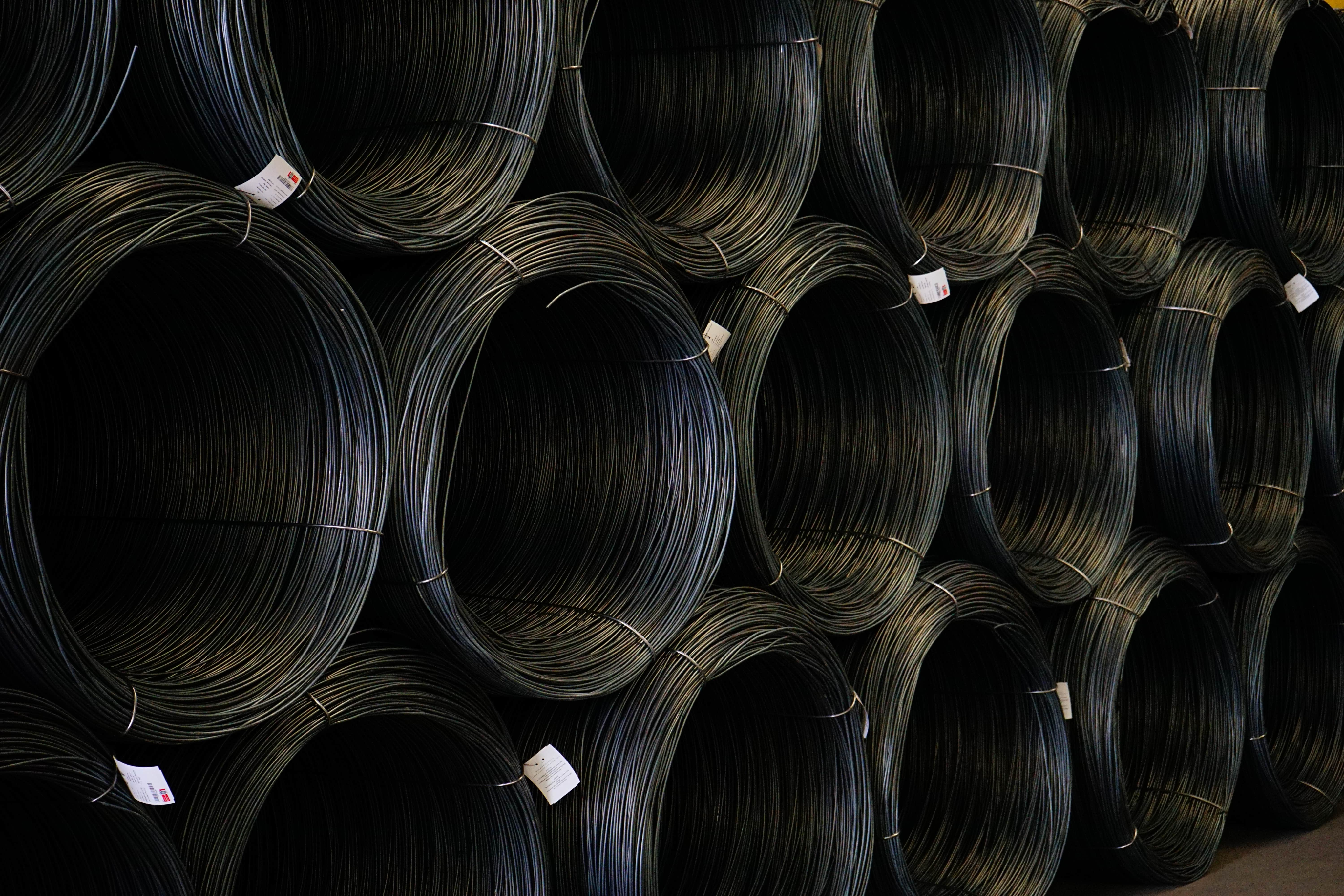

Each bundle that is produced and tested and approved is labelled with plastic labels, which ensure the traceability of the product.
